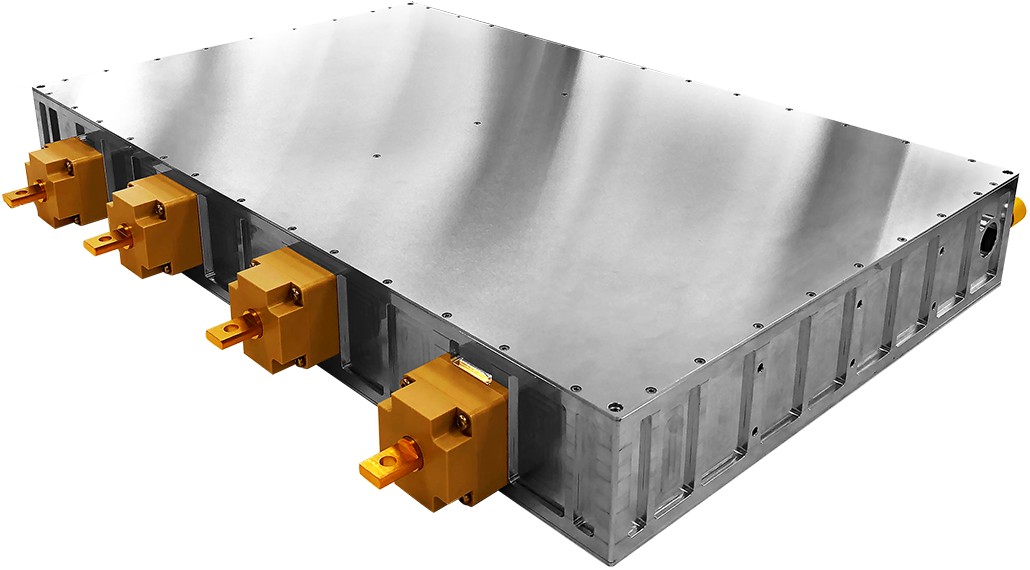

To meet the specific high-voltage demands of applications like off-highway vehicles and fuel cells, BrightLoop has developed the DCUHV LP converter. This converter features a unique nested topology, enabling a maximum operating voltage of 2.4 kV. By adding multiple units in parallel, megawatt-level power conversion can be reached. With its IP69 casing and weight of under 35 kg, the DCUHV LP eliminates the need for bulky power converter cabinets, revolutionizing vehicle integration.
Technical Specifications
Continuous power
jusqu'à 800kW
CAN
yes
Efficiency
99% nominal
Protection
IP67
Cooling system
Liquid
Weight
<35kg
Galvanic isolation
no
Buck or boost
15kW/kg
HT
Number of ports
1-8
Min voltage
0VDC
Max voltage
2400VDC
Max current
400A
BT
Number of ports
1-8
Min voltage
0VDC
Max voltage
2400VDC
Max current
400A
