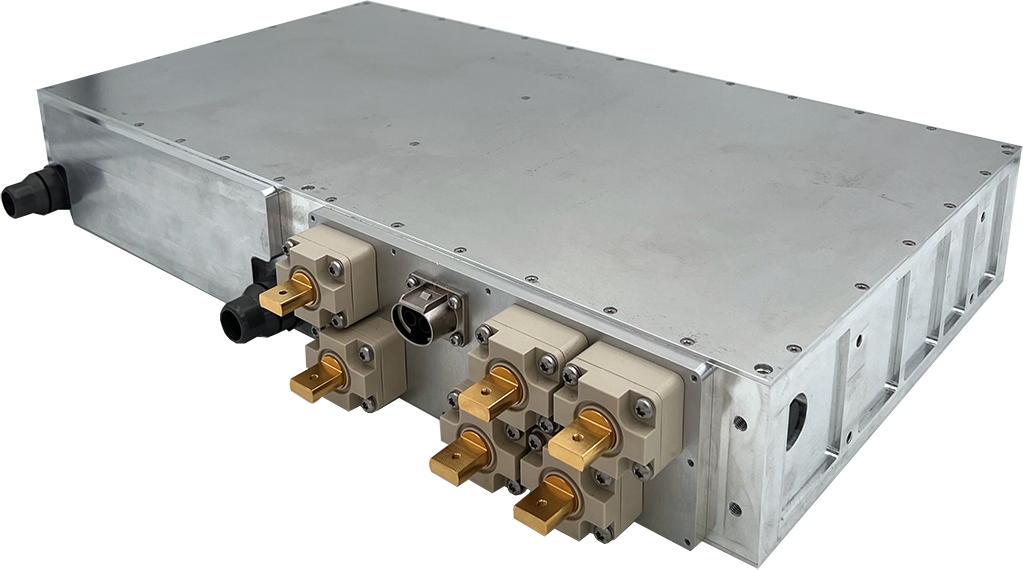

The DCHV LP converter excels with its current capacity of up to 960 A and maximum capacity of 950 Vdc/700 kW. This converter boasts the highest power density on the market, making it the ideal choice for all onboard architectures. It supports up to 16 ports, offering extensive possibilities for input-output configurations.
Technical Specifications
Continuous power
jusqu'à 760kW
CAN
yes
Efficiency
98% nominal
Protection
IP67
Cooling system
Liquid
Weight
<20kg
Galvanic isolation
no
Buck or boost
>25kW/kg
HT
Number of ports
1-16
Min voltage
0VDC
Max voltage
950VDC
Max current
960A
BT
Number of ports
1-16
Min voltage
0VDC
Max voltage
950VDC
Max current
960A
